An STP plant is one of those pieces of infrastructure most people never see, yet every city, hospital, hotel and housing society depends on it. If you have searched for the STP full form or wondered what actually happens to the water that leaves your kitchen and bathroom, this guide explains it in plain language.

We will cover what STP stands for, why it matters, how an STP plant works step by step, the main technologies used in India, and the equipment that keeps a plant running every day.

What Is the Full Form of STP?

The full form of STP is Sewage Treatment Plant. You may also hear it called a wastewater treatment plant (WWTP) or, in municipal projects, a sewage treatment works. In India, the short form “STP plant” is used everywhere, from builder brochures to pollution control board consents, even though “plant” repeats the P in STP.

A related term you will often see is ETP, which stands for Effluent Treatment Plant. An ETP treats industrial wastewater, while an STP plant treats domestic sewage. We compare the two in detail in our guide on ETP vs STP.

STP Plant Meaning in Simple Words

In simple terms, an STP plant is a system of tanks, pumps, blowers and filters that cleans used household water. Sewage contains about 99.9% water and only a small fraction of solids, but that fraction includes organic matter, nutrients, oils and disease-causing bacteria. The plant separates and breaks down these pollutants so the water that comes out meets discharge standards.

Most STPs rely on bacteria to do the hard work. Air is blown into the sewage, and microorganisms feed on the dissolved organic matter, converting it into carbon dioxide, water and more bacteria. Those bacteria then settle out as sludge, leaving clear water behind. This is the same principle described in the classic activated sludge process.

Why Is an STP Plant Needed?

Untreated sewage is one of the biggest causes of river and groundwater pollution in India. A properly run sewage treatment plant protects health, the environment and, increasingly, the water budget of a building or city.

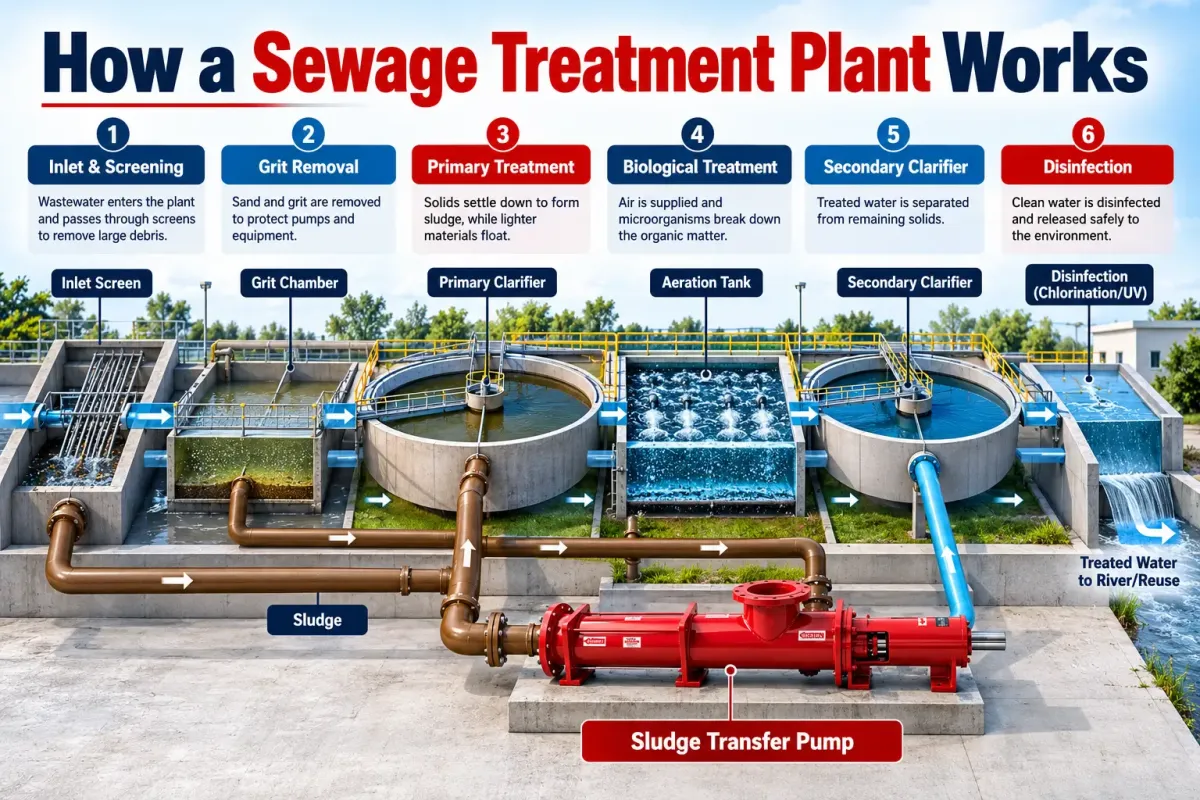

How an STP Plant Works: Step by Step

Every STP plant follows the same basic logic: remove the big things first, then the settleable solids, then the dissolved organic matter, and finally polish and disinfect the water. Here is how the stages fit together.

1. Preliminary Treatment: Screening and Grit Removal

Raw sewage first passes through bar screens that catch plastics, rags, cloth and other large objects that would damage pumps. It then flows through a grit chamber where sand and gravel settle out. Oil and grease traps are often added in hotels, hospitals and commercial kitchens.

2. Equalization Tank

Sewage flow is never steady. It peaks in the morning and evening and drops at night. An equalization tank stores the incoming sewage and lets transfer pumps feed the biological stage at a steady rate, which keeps treatment stable. Coarse bubble aeration in this tank prevents septic conditions and odour.

3. Primary Treatment: Settling

In larger plants, a primary clarifier allows heavier suspended solids to settle by gravity. This removes a meaningful share of suspended solids and some of the organic load before biological treatment. Many smaller packaged STPs skip this stage and go straight to biological treatment.

4. Secondary (Biological) Treatment

This is the heart of the STP plant. In an aeration tank, blowers supply oxygen through diffusers, and microorganisms consume dissolved organic matter. The technology used here gives the plant its name: activated sludge (ASP), extended aeration, MBBR, SBR or MBR. Each has trade-offs in space, power and output quality, which we explain in our MBBR vs SBR vs MBR comparison.

5. Secondary Clarifier or Tube Settler

The mixture of water and bacteria flows into a settling tank. The biological solids, now called activated sludge, settle at the bottom. Part of this sludge is pumped back to the aeration tank (return activated sludge) to keep the bacteria population healthy, and the excess is sent to sludge handling.

6. Tertiary Treatment and Disinfection

To reach reuse quality, clarified water passes through a pressure sand filter and an activated carbon filter to remove fine suspended solids, colour and odour. It is then disinfected with chlorine (sodium hypochlorite dosing) or UV, sometimes with ultrafiltration added for very high quality reuse.

7. Sludge Handling

Excess sludge is thickened and then dewatered using a filter press, screw press, centrifuge or sludge drying beds. Polymer is dosed to help the solids bind together. The dewatered cake is disposed of or used as manure where permitted.

Main Components of an STP Plant

The table below lists the key equipment you will find in a typical sewage treatment plant and what each one does.

Types of STP Plant Technology

The biological stage can be built using several technologies. The right choice depends on the available land, required treated water quality, power cost and how skilled the operators are.

• Activated Sludge Process (ASP) and Extended Aeration: the traditional, proven method. Needs more space but is simple to understand.
• MBBR (Moving Bed Biofilm Reactor): plastic media carriers hold the bacteria, giving a compact plant that handles load swings well. Very popular in apartments.
• SBR (Sequencing Batch Reactor): treatment and settling happen in the same tank in timed cycles. Good for nutrient removal and variable flows.
• MBR (Membrane Bioreactor): membranes replace the clarifier, giving very high quality water in a small footprint, at a higher cost.
• Packaged or prefabricated STP: factory-built units for small capacities, explained in our guide to packaged STPs.

Where Are STP Plants Used?

An STP plant can be sized for a single building or for an entire city. Common applications include:

• Residential apartments, gated communities and townships (see STP plant for apartments)
• Hotels, resorts, hospitals and malls
• Schools, colleges and IT parks
• Factory townships and the domestic sewage from industrial units
• Municipal sewage treatment for towns and cities

The Role of Pumps in an STP Plant

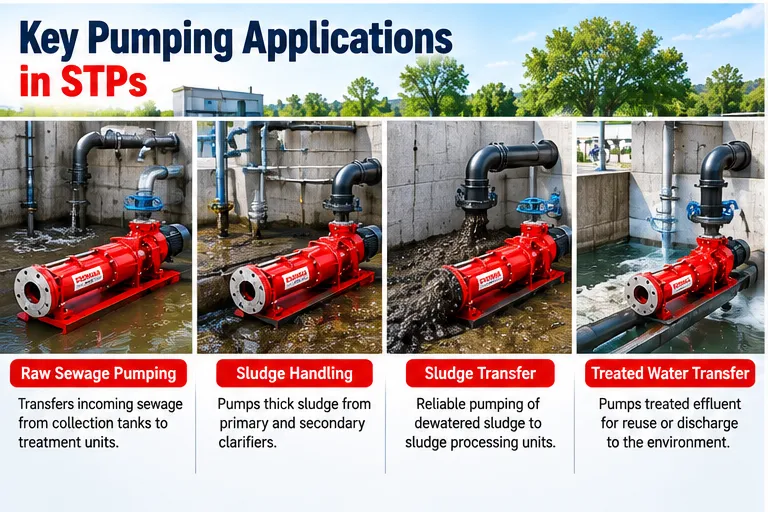

Water does not flow uphill by itself, and sewage contains solids that settle and clog. That is why pumps are working at almost every stage of an STP plant: lifting raw sewage, transferring it from the equalization tank, recirculating sludge, feeding the filter press and dosing chemicals.

Sludge duties are the toughest. Thick, abrasive sludge needs a pump that moves it gently without clogging, which is why a progressive cavity pump is the standard choice for sludge transfer and filter press feed. Accurate chemical addition calls for reliable dosing pumps. For a full breakdown of every pumping duty, read our complete STP pump guide.

Ropman Engineering Corporation manufactures progressive cavity, wide throat and dosing pumps for sewage treatment plants in Meerut, India, with rotors and stators made in-house. Learn more about our wastewater, ETP and STP solutions, or read the background on sewage treatment.

A Day in the Life of Sewage: A Simple Example

Imagine a housing society of 200 flats. Between 6 and 9 in the morning, showers, toilets and kitchens send a surge of wastewater into the sewer line. By the time it reaches the treatment area, it carries hair, food scraps, soap, plastics that should never have been flushed, and dissolved organic matter that cannot be seen at all.

The screen catches the plastics and rags first. The grit chamber lets sand from floor washing drop out. The water then rests in the equalization tank, which fills during the morning rush and slowly empties through the afternoon and night, so the biology downstream receives a steady diet instead of a flood.

In the aeration tank, billions of bacteria go to work. Within several hours, most of the dissolved organic load has been consumed. The mixture moves to the settler, where the bacteria clump together and sink. The clear water at the top flows on through sand and carbon filters, receives a measured dose of chlorine, and is stored in a treated water tank. By evening, the same water that left the bathrooms in the morning is flushing toilets and watering the society’s lawns.

Meanwhile, the settled sludge does not stay idle. A share of it is pumped back to the aeration tank to keep the bacteria population strong. The rest is pumped to a holding tank, mixed with polymer and squeezed in a filter press into a cake that can be carried away. Each of these moves depends on a pump doing its job quietly in the background.

Common Myths About Sewage Treatment

Glossary of Common STP Terms

Sewage treatment comes with a lot of shorthand. These are the terms you will hear most often from consultants, operators and pollution control boards.

• KLD / MLD: kilolitres per day and million litres per day, the units for plant capacity.
• BOD: Biochemical Oxygen Demand, a measure of biodegradable organic pollution.
• COD: Chemical Oxygen Demand, a measure of total oxidisable pollution.
• TSS: Total Suspended Solids, the particles still floating in the water.
• MLSS: Mixed Liquor Suspended Solids, the concentration of bacteria in the aeration tank.
• DO: Dissolved Oxygen, the oxygen available to the bacteria.
• HRT: Hydraulic Retention Time, how long the water stays in a tank.
• RAS / WAS: Return Activated Sludge and Waste Activated Sludge.
• SV30: the volume of sludge that settles in a one-litre jar in 30 minutes, a quick health check.
• Tertiary treatment: polishing steps such as filtration and disinfection after biological treatment.

Quick Checklist: Is Your STP Plant Healthy?

If several of these are missing, the plant needs attention. Our STP maintenance checklist explains what to check daily, weekly and monthly, and our guide to CPCB STP norms lists the limits your treated water must meet.
